600mm restrain joint type di pipe ductile iron pipe repair

600mm restrain joint type di pipe ductile iron pipe repair

Material

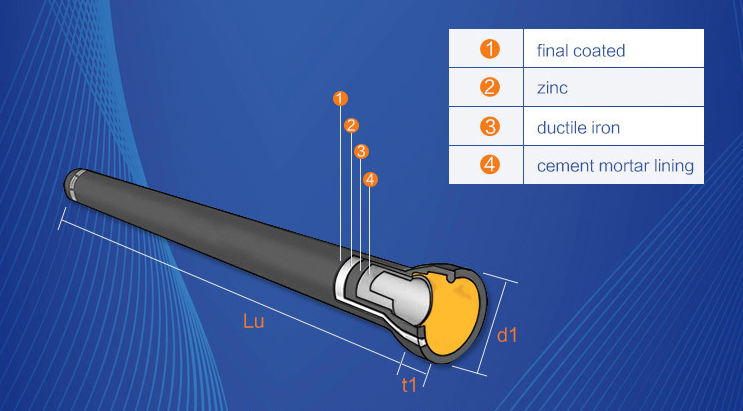

Ductile IronType: SeamlessTest: 100% Water Pressure TestTechnical Process: Green Sand Casting Production LineJoint Type: T-Type,K-Type,Flange TypeSurface treatment: Black Paint,varnish,oil,galvanized,anti-corrosion coatedExternal Coating: Zinc + Bitumen PaintingInternal coating: Mortar Cement LiningInscription Style: Standard Inscription,as per customers' requirementsCertification: ISO9001:2008,ISO2531:1998,NBR7675,EN545:2010
Standard
ISO2531/EN545/EN598Application: Water supply,drainage pipesPipe Wall Thickness: 6.0-22.5mmPull Strength: ≥420MPaYield (≥ MPa): 300 MPaMaterial: Ductile IronType: SeamlessTest: 100% Water Pressure TestTechnical Process: Green Sand Casting Production LineJoint Type: T-Type,K-Type,Flange TypeSurface treatment: Black Paint,varnish,oil,galvanized,anti-corrosion coatedExternal Coating: Zinc + Bitumen PaintingInternal coating: Mortar Cement LiningInscription Style: Standard Inscription,as per customers' requirementsCertification: ISO9001:2008,ISO2531:1998,NBR7675,EN545:2010
Size
DN80-DN2000mmLength: 6m/5.7m/8.15mStandard: ISO2531/EN545/EN598Application: Water supply,drainage pipesPipe Wall Thickness: 6.0-22.5mmPull Strength: ≥420MPaYield (≥ MPa): 300 MPaMaterial: Ductile IronType: SeamlessTest: 100% Water Pressure TestTechnical Process: Green Sand Casting Production LineJoint Type: T-Type,K-Type,Flange TypeSurface treatment: Black Paint,varnish,oil,galvanized,anti-corrosion coatedExternal Coating: Zinc + Bitumen PaintingInternal coating: Mortar Cement LiningInscription Style: Standard Inscription,as per customers' requirementsCertification: ISO9001:2008,ISO2531:1998,NBR7675,EN545:2010
Wall thickness
6.0-22.5mmPull Strength: ≥420MPaYield (≥ MPa): 300 MPaMaterial: Ductile IronType: SeamlessTest: 100% Water Pressure TestTechnical Process: Green Sand Casting Production LineJoint Type: T-Type,K-Type,Flange TypeSurface treatment: Black Paint,varnish,oil,galvanized,anti-corrosion coatedExternal Coating: Zinc + Bitumen PaintingInternal coating: Mortar Cement LiningInscription Style: Standard Inscription,as per customers' requirementsCertification: ISO9001:2008,ISO2531:1998,NBR7675,EN545:2010
Inquire Now

Product Description

600mm restrain joint type di pipe ductile iron pipe repair

Specification
DN
DE(mm)
K9 Nominal Wall Thickness(mm)
Weight per meter(kg/m)
Weight of Socket Pipe(kg)
Total Weight(kg)
80
98
6.0
12.2
3.4
77
100
118
6.0
15.1
4.3
95
125
144
6.0
18.9
5.7
119
150
170
6.0
22.8
7.1
144
200
222
6.3
30.6
10.3
194
250
274
6.8
40.2
14.2
255
300
326
7.2
50.8
18.6
323
350
378
7.7
63.2
23.7
403
400
429
8.1
75.5
29.3
482
450
480
8.6
89.7
38.3
575
500
532
9.0
104.3
42.8
669
600
635
9.9
137.3
59.3
882
700
738
10.8
173.9
79.1
1123
800
842
11.7
215.2
102.6
1394
900
945
12.6
260.2
129.9
1691
1000
1048
13.5
309.3
161.3
2017
1200
1255
15.3
420.1
237.7
2758
1400
1462
17.1
547.2
279.3
3669
1600
1668
18.9
690.3
375.4
4668
1800
1875
2037
850.1
490.6
5803
2000
2082
22.5
1026.3
626.4
7068

600mm restrain joint type di pipe ductile iron pipe repair

600mm restrain joint type di pipe ductile iron pipe repair

All pipes shall be subjected to a works hydrostatic test for a duration of at least 15 seconds at the minimum internal test pressure given in the table.

 c30 c4 class 250mm black bs en 545 ductile iron pipe class k9 competitive prices

Minimum work test pressure(Bar)
DN(mm)
ISO2531-1998
ISO2531-2009

K<9
K≥9
Preferred pressure classes
≤300
0.5(K+1)2
50
40
350-600
0.5K2
40
30
700-1000
0.5(K-1)2
32
25
1200-2000
0.5(K-2)2
25
25

600mm restrain joint type di pipe ductile iron pipe repair

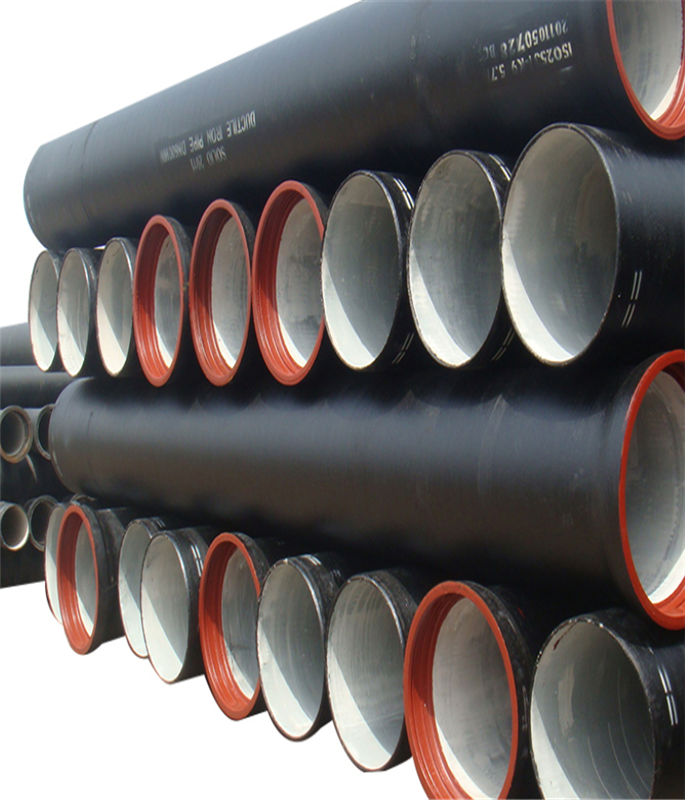

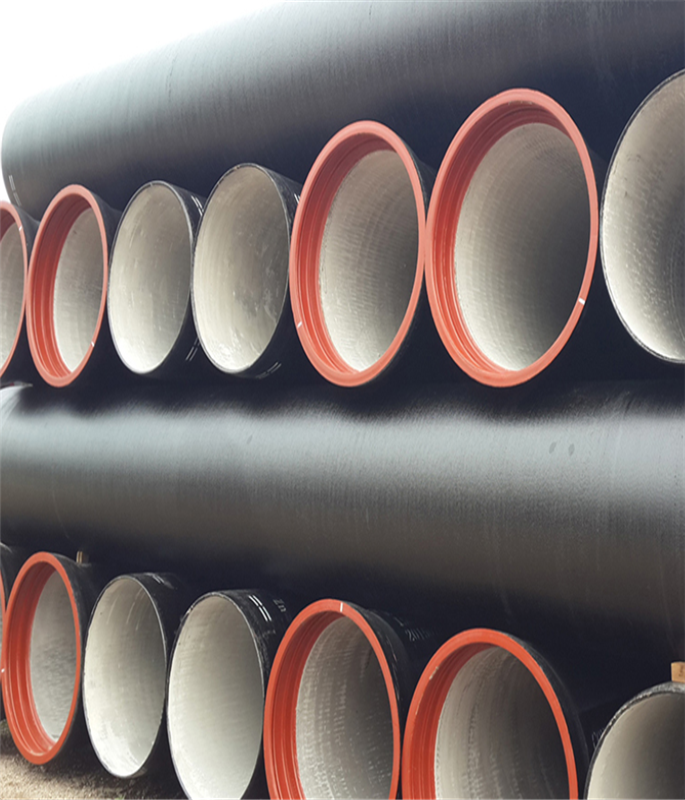

Product Display

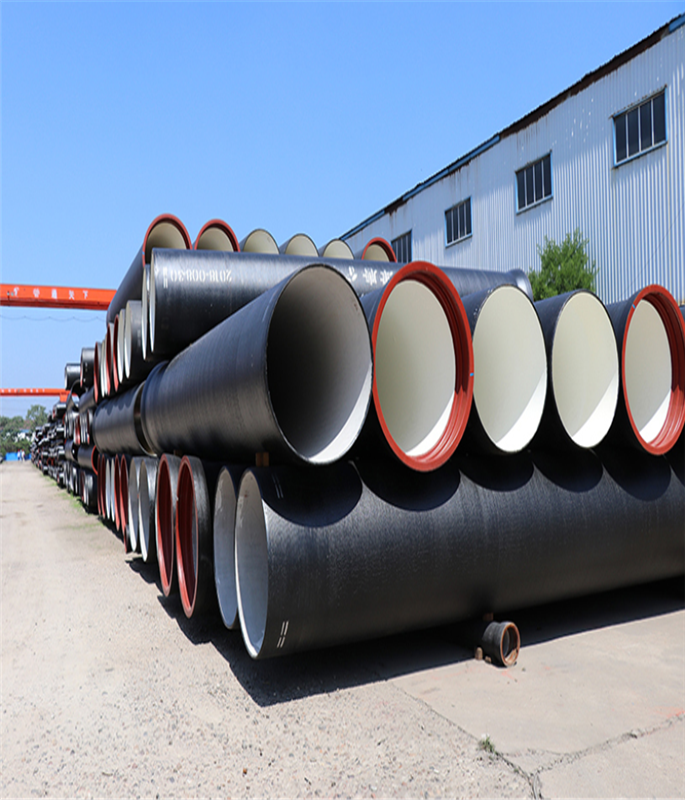

Work Shop
