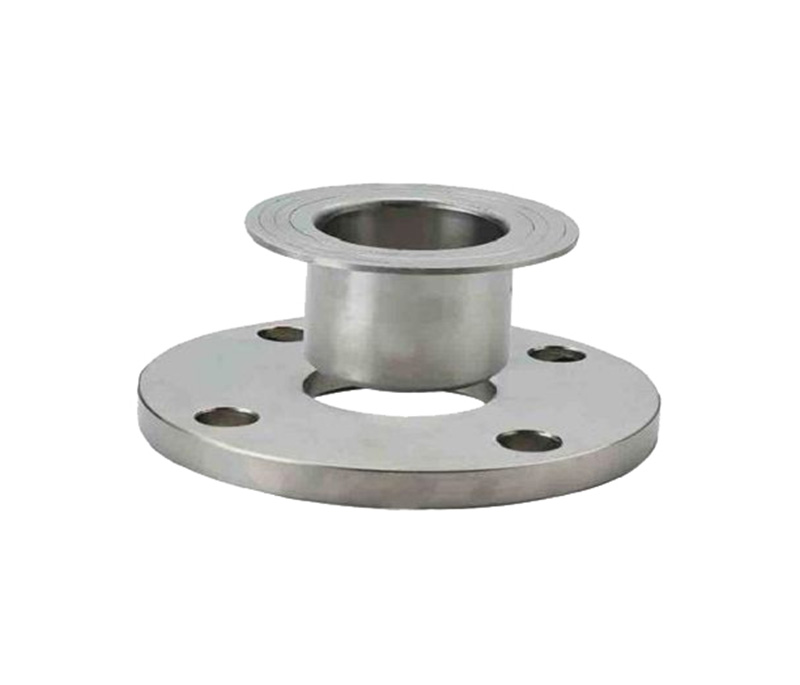

Lap joint flanges use a stub end that is welded to the pipe. A ring flange fits loosely around the stub end, permitting easy flange alignment of the bolt holes. A lap joint flange is also called Van Stone or Stub Flange.
Standard | Type | Class | Size |
| ASME B16.5 | WN/LWN/SO/Blind/Lap Joint | 150#-2500# | 1/2"-24"(Except Blind Flange 2500lb 1/2"-12") |
| SW flange | 150#-1500# | 1/2"-3"(Except 1500# 1/2"-2 1/2") | |
| Threaded | 150#-900# | 1/2"-24" | |
| 1500# 2500# | 1/2"-2 1/2" | ||
| ASME B16.47 Series A | WN/blind flange | 150# -900# | 22"-48"(Except 900# Size:26"-48") |
| ASME B16.47 Series B | WN/blind flange | 75#-300# | 26"-48" |
| 400# 600# 900# | 26"-36" | ||
| DIN2527 | Blind flange | PN6-PN100 | DN10-DN1000 |
| DIN2543 | SO flange | PN16 | DN10-DN1000 |
| DIN2544 | SO flange | PN25 | DN10-DN1000 |
| DIN2545 | SO flange | PN40 | DN10-DN500 |
| DIN2565 | Threaded flange with Neck | PN6 | DN6-DN200 |
| DIN2566 | Threaded flange with Neck | PN16 | DN6-DN150 |
| DIN2567 | Threaded flange with Neck | PN25 PN40 | DN6-DN150 |
| DIN2568 | Threaded flange with Neck | PN64 | DN10-DN150 |
| DIN2569 | Threaded flange with Neck | PN100 | DN10-DN150 |
| EN1092-1:2002 | Plate flange for welding/loose plate flange with weld-on plate collar or for lapped pipe end/Blind Flange/WN flange | PN2.5-PN100 | DN10-DN4000 |
| JIS B2220 | Welding flange, lap joint flange, threaded flange | PN6-PN100 | DN10-DN1500 |
| BS4504 BS10 TableD/E | Plate Flange for welding/WN flange/blank Flange | PN6-PN100 | DN10-DN1500 |
| Coating | Vanish, yellow paint, anti-rust oil, galvanizing etc | ||
| Material Grade | Nickel Alloy Steel | ASTM/ASME B/SB564 UNS N02200(NICKEL 200), UNS N04400(MONEL 400), | |
| UNS N08825( INCOLOY 825),UNS N06600(INCONEL 600), | |||
| UNS N06601(INCONEL 601), UNS N06625(INCONEL 625), UNS N10276(HASTELLOY C276), | |||
| ASTM/ASME B/SB160 UNS N02201(NICKEL 201), ASTM B/SB472 UNS N08020(Alloy 20) | |||
| Copper Alloy | ASTM/ASME B/SB151 UNS C70600(CuNi 90/10), C71500(CuNi 70/30) | ||
| Stainless Steel | ASTM/ASME A/SA182 F304,304L,304H,309H,310H,316,316H,316L,316LN, | ||
| 317,317L,321,321H,347,347H | |||
| Duplex and Super Duplex Steel | ASTM/ASME A/SA182 F44,F45,F51,F53,F55,F60,F61 | ||
| Carbon steel | ASTM /ASME A/SA105(N) | ||
| Low Temp Carbon Steel | ASTM/ASME A/SA350 LF2 | ||
| High Yield Carbon Steel | ASTM/ASME A/SA694 F52,F56 F60, F65, F70 | ||
| Alloy Steel | ASTM/ASME A/SA182 GR F5,F9, F11,F12,F22,F91 | ||
| Titanium | ASTM/ASME B/SB381 Grade 2, Grad | ||
Pipefun Pipe keeps more than 2000 tons stocks at hand, we offer one stop buying and fast delivery. Full sizes and full standards products are available. We also have ISO and API 5L certificates.
Pipefun is the relaible partner for project solution and long time business relationship! Free inquiry for good price!
Display:
Hebei Pipefun Pipe and Fitting facility Co., Ltd., is established in 2000, it is a specialized enterprise professional in producing steel pipes and pipe fittings. Choosing us to be your business partner can bring you great advantages in business! There are 25 engineers and 89 skilled workers in our factory.

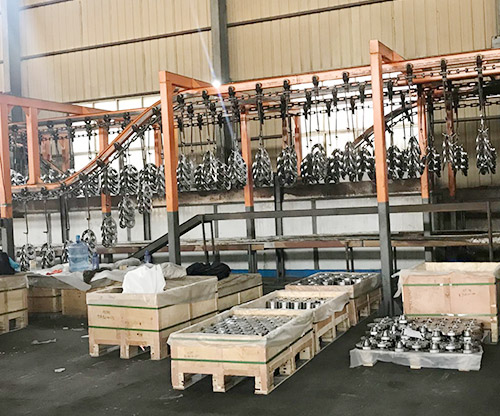

Factory Workshop

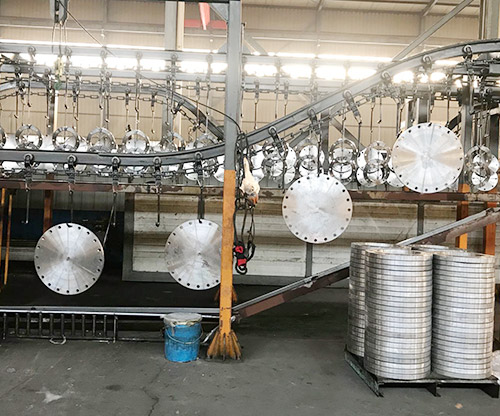

Factory Workshop
