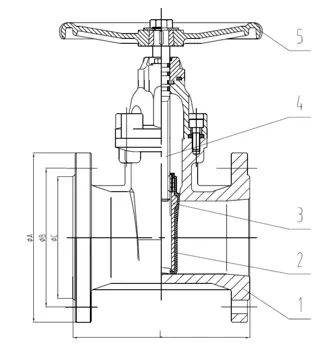

Name | 1-Body | 2-Seat | 3-Disc | 4-Stem | 5-Actuator |
Material | DI | EPDM | DI | 2Cr13 | Handwheel |
DN | NPS | L | ΦA | ΦB | ΦC |
50 | 2" | 150 | 165 | 125 | 102 |
65 | 2 1/2" | 170 | 185 | 145 | 122 |
80 | 3" | 180 | 200 | 160 | 138 |
100 | 4" | 190 | 220 | 180 | 158 |
125 | 5" | 200 | 250 | 210 | 188 |
150 | 6" | 210 | 285 | 240 | 212 |
200 | 8" | 230 | 340 | 295 | 268 |
250 | 10" | 250 | 405 | 355 | 320 |
300 | 12" | 270 | 460 | 410 | 378 |
350 | 14" | 290 | 520 | 470 | 438 |
400 | 16" | 310 | 580 | 525 | 490 |
450 | 18" | 330 | 640 | 585 | 550 |
500 | 20" | 350 | 715 | 650 | 610 |
600 | 24" | 390 | 840 | 770 | 725 |
700 | 28" | 430 | 910 | 840 | 795 |
800 | 32" | 470 | 1025 | 950 | 900 |
900 | 36" | 510 | 1125 | 1050 | 1000 |
1000 | 40" | 550 | 1255 | 1170 | 1115 |
1200 | 48" | 630 | 1485 | 1390 | 1330 |

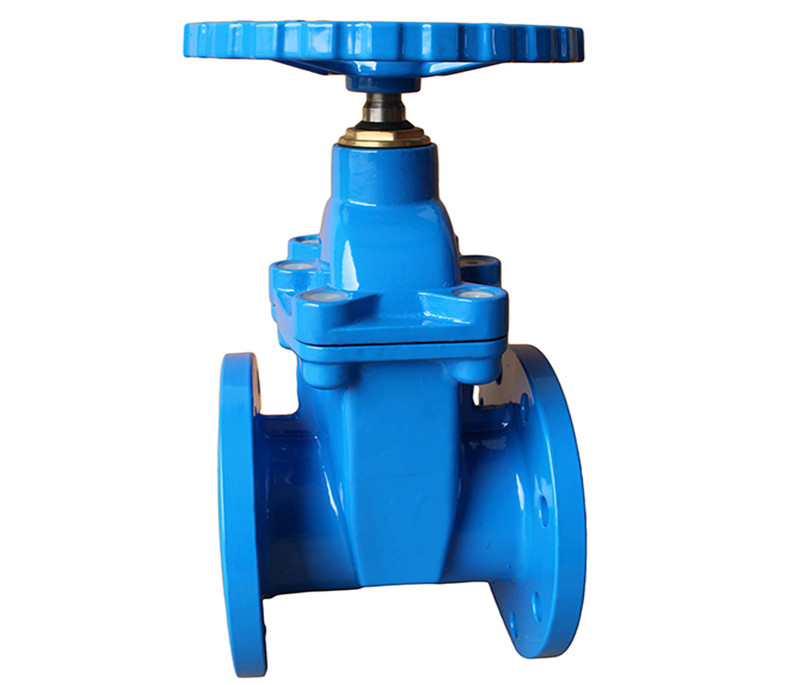

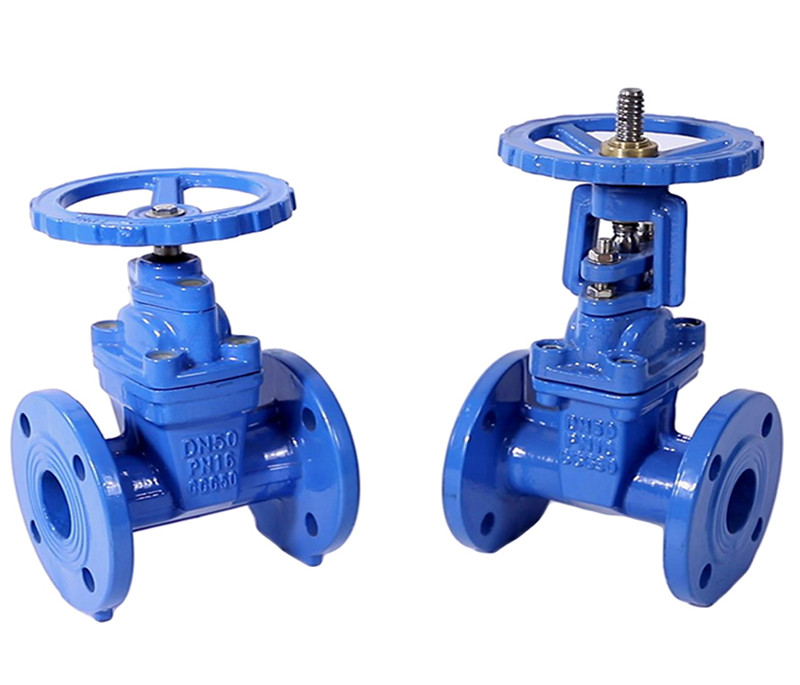

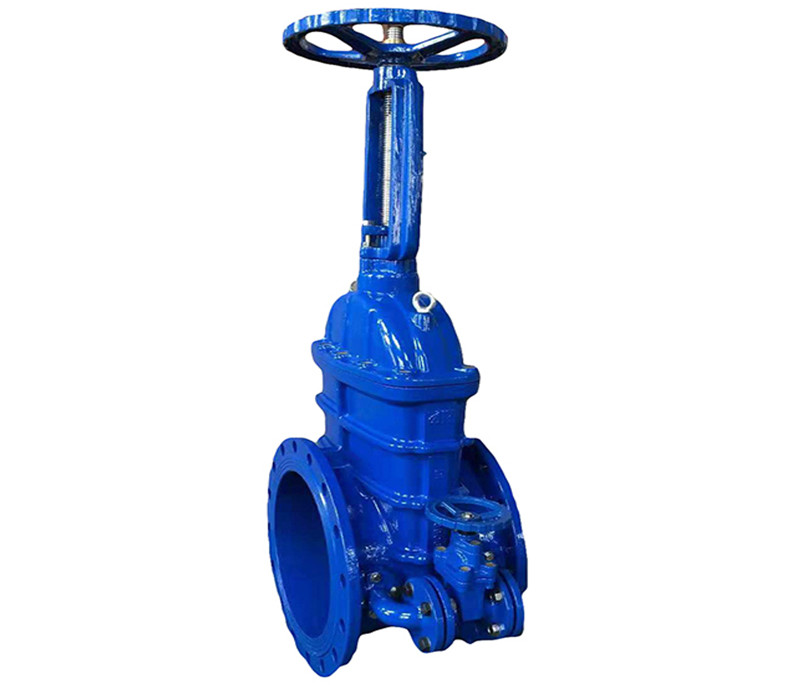

Name: Flanged Cast Iron Valve Steam Globe Gate Valve Water Ductile Cast Brass Iron Gate Valve
Model Number: Forged Steel Valve
Power: Manual and electric
Port Size: 1/4" to 2"
Temperature: -196C~450C
Material: A105/F5/F11/F22/304/304L/316/316L/LF2
Connection Ends: Flanged
Class: Class150~class2500
Operation: Hand wheel
Medium: Water,Oil,Gas,Steam and chemical liquid.
