NO | Name | Material |
1 | valve body | GS-C25 1.7363 1.4308,1.4408,1.4306,1.4301 |
2 | Disc | ASTM A182-Gr.F6a ASTM 182-F22 ASTM A182 F304,F316,F321,F304L,F316L |
3 | Bolzen | ASTM A182-Gr.F6a ASTM 182-F22 ASTM A182-F304,F316,F321,F304L,F316L |
4 | Bellows subassembly | 1Cr18Ni9Ti,304,316 |
5 | Valve stem | ASTM A182-Gr.F6a ASTM 182-F22 ASTM A182-F304,F316,F321,F304L,F316L |
6 | Valve deck | GS-C25 1.7363 1.4308,1.4408,1.4306,1.4301 |
7 | Packing | soft graphite,PTFE |
8 | Packing Gland | GS-C25 1.7363 1.4308,1.4408,1.4306,1.4301 |
9 | Locating plate | 25,45,304,316 |
10 | Stem nut | Copper alloy C95200 |
11 | Hand wheel | WCB/QT400-18 |
12 | Stud | ASTM A193-B7,A193-B8,193-B8M |
13 | Hexagon nut | ASTM A194-2H,A194-8,194-8M |
14 | Washer | soft graphite+ stainless,PTFE |
Nominal pressure(MPa) | Body test pressure(Mpa) | Seal test pressure(Mpa) | Applicable temperature | Medium |
1.6 | 2.4 | 1.76 |
-20℃ ~ 350℃ |
water, steam,oil ect |
2.5 | 3.75 | 2.75 | ||
4.0 | 6.0 | 4.4 | ||
6.4 | 9.6 | 7.04 |

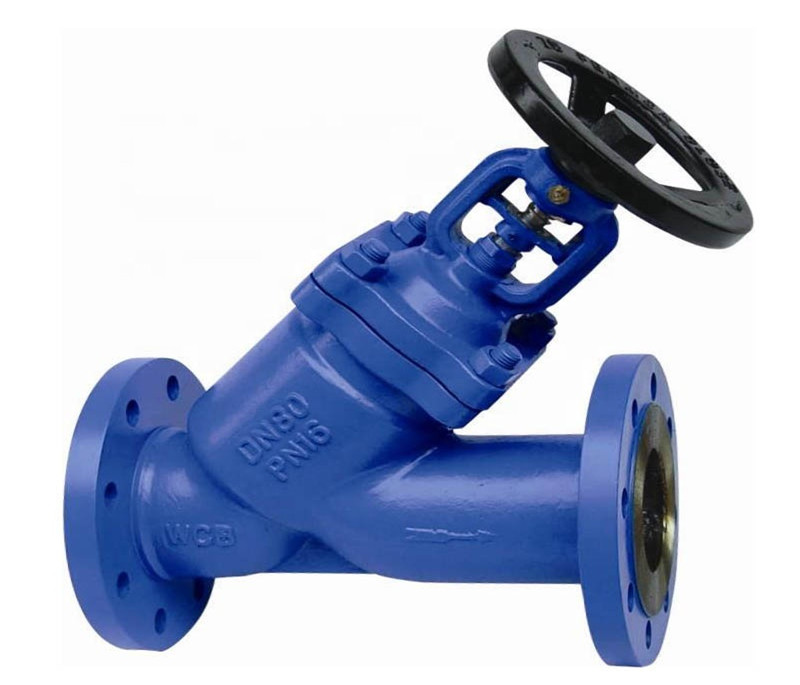

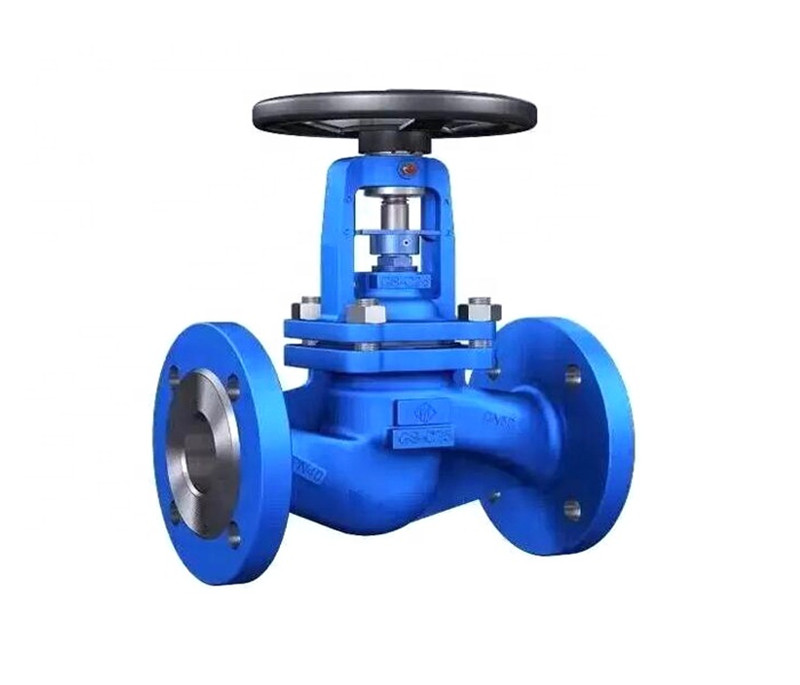

Name: Din standard bellows seal ptfe lined cast iron globe valve for steam
Valve body: GS-C25 1.7363 1.4308,1.4408,1.4306,1.4301
Disc: ASTM A182-Gr.F6a ASTM 182-F22 ASTM A182 F304,F316,F321,F304L,F316L
Model Number: Forged Steel Valve
Power: Manual and electric
Port Size: 1/4" to 2"
Temperature: -196C~450C
Material: A105/F5/F11/F22/304/304L/316/316L/LF2
Top Flange: ISO 5211
Connection Ends: Flanged
Class: Class150~class2500
Operation: Hand wheel
Medium: Water,Oil,Gas,Steam and chemical liquid.
